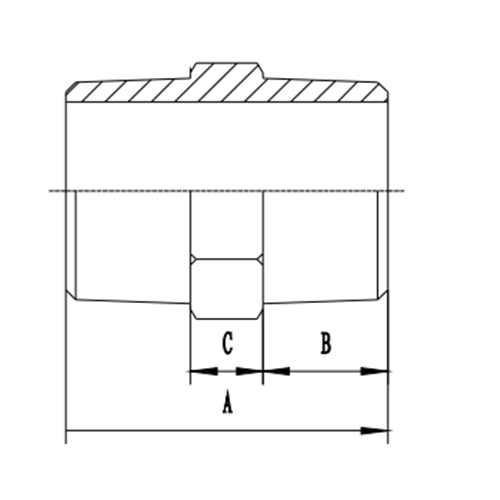

Main outer size

SIZE	A	B	c	sw	Angle number
1/8	28	11	6	13	6
1/4	32	13	6	15	6
3/8	37	15	7	19	6
1/2	42	17	8	23	6
3/4	45	18	9	29	6
1	49	19	11	36	8
1 1/4	54	21	12	45	8
1 1/2	56	22	12	51	8
2	65	26	13	63	8
2 1/2	76	31	14	78	8
3	80	33	14	92	8
4	86	36	14	117	8

Product Description:

According to the requirements of customers, we can make all kinds of materials, non-standard, extra thick wall pipe bends;

Material: 321, 304, 304L, 316, 316L and other pipe fittings.

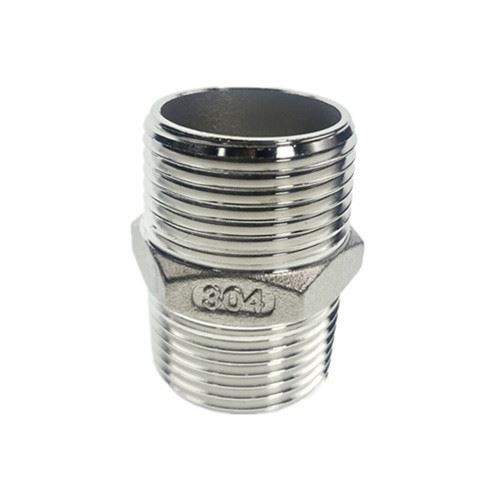

Double thread is a single thread pipe formed by polishing the other parts of the thread (internal and external teeth) at both ends of a steel pipe. Among them, the inner teeth are double head inner wires, and the outer teeth are double head outer wires.

Product uses:

food, beverage, cosmetics, industry, chemical industry

Price：

Our price fluctuates with raw materials and exchange rate.Please leave your contact information and give you a new quotation as soon as possible.

Packing:

wooden case, wooden pallet or packing method specified by customers.
