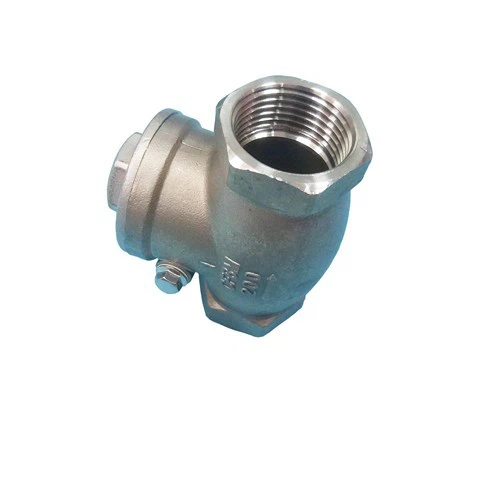

Horizontal Check Valve
Horizontal Check Valve Full Bore 1/2"-2"


Main parts and materials
Number | Part name | Material |
1 | Valve Body | |
2 | Disc | CF8M |
3 | Pin | SS304 |
4 | Seal Ring | PTFE |
5 | Bonnet | CF8 |
Feature:
Full Bore
Size: 1/2"~2"
Working Pressure: 200PSI
Female Threaded End:
BSPK、 NPT、DIN2999
Main outer size

Principle of operation:
The internal screw swing check valve adopts the swing arm swing type structure, the disc rotates around the rotating shaft, the disc is opened under the action of fluid pressure, and the fluid flows from the inlet side to the outlet side.
When the pressure at the inlet side is lower than the outlet side, the valve disc will be closed automatically under the action of fluid pressure difference and gravity to prevent the flow back.
Product characteristics:
1. The structure is simple, the volume is small and the weight is light.
2. It is convenient to repair and replace.
3. Multiple thread types: G· NPT.BSPT.BSP Din259/2999 is optional.
4. The flow path is smooth and the fluid resistance is small, and the valve disc can be fully opened under a very small pressure difference.
Application:
widely used in mining industry, petrochemical industry, environmental protection industry, water
supply engineering, paper making, metallurgy, etc
Price:Our price fluctuates with raw materials and exchange rate.
Please leave your contact information and give you a new quotation as soon as possible.
Packing: wooden case, wooden pallet or packing method specified by customers.
