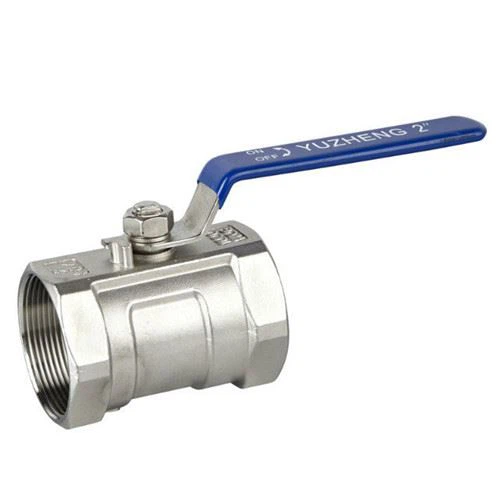

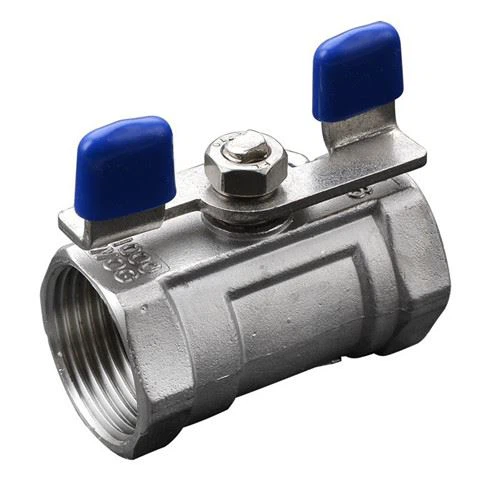

Stainless Steel Two Piece Flange Ball Valve
Product Introduction
After years of hard work in the market, our company has won a good reputation in the domestic and foreign markets with its keen market judgment and high-quality Ecc Con Swage Nipple, Stainless Steel Lift Check Valve, Valve Accessories. The company insists on being people-oriented, making the best use of its talents and making the best use of its materials. It takes technological innovation and high-quality service as the foundation for development. In a highly competitive market, it adheres to quality and reputation as its core and continuous innovation to meet the development needs of customers. We are skilled in using domestic professional marketing methods to create market-leading influence and sales power. Our expertise provides a reliable guarantee that your application needs will be met. We adhere to the quality of products as the fundamental, professional and technical research and development personnel strictly control the quality.
Specifications
Nominal pressure | PN | 1.6、 2.5、 4.0、 6.4 | MPa |
Strength testing pressure | PT | 2.4、 3.8、 6.0、 9.6 | |
Seat testing pressure (low pressure) | 0.6 | ||
Seattesing pressure | 1.8、2.8、4.4、7.1 | ||
Materials of main parts
Description of parts | Q11F-(16-64)C | Q11F-(16-64) P | Q11F-(16-64R) |
Body | WCB | ZG1Cr18Ni9Ti | ZG1Cr18Ni12Mo2Tii |
Ball | 304 | 304 | 316 |
Stem | 304 | 304 | 316 |
sealring | Polytetrafluorethylene (PTEF) | ||
Packing | Polytetrafluorethylene (PTEF) | ||

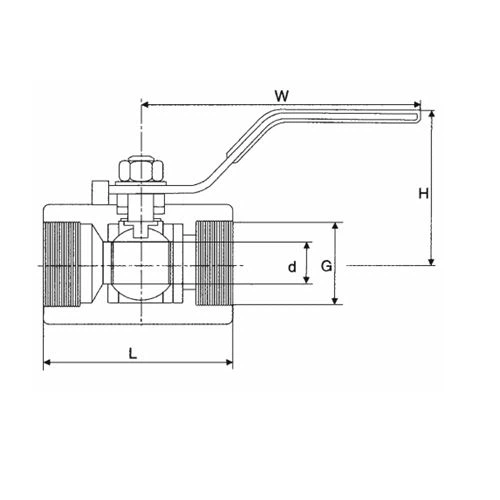

Main outer size
DN | G | d | L | H | W |
6 | 1/4" | 5 | 40 | 28 | 70 |
10 | 3/8" | 7 | 45 | 30 | 70 |
15 | 1/2" | 9 | 56 | 34 | 90 |
20 | 3/4" | 12 | 60 | 38 | 90 |
25 | 1" | 15 | 70 | 50 | 110 |
32 | 11/4" | 20 | 80 | 56 | 120 |
40 | 11/2" | 25 | 85 | 60 | 130 |
50 | 2" | 32 | 100 | 65 | 140 |
65 | 2 1/2" | 38 | 118 | 72 | 180 |
Price
Our price fluctuates with raw materials and exchange rate. Please leave your contact information and give you a new quotation as soon as possible.
Product Description
Handle mode: with or without lock
Specification: dn6-dn 100 (mm)
Temperature: normal temperature
Medium: water, oil and gas
Thread type: G· NPT.BSPT.BSP. DIN259/2999
Application
widely used in petroleum, chemical, urban water supply and drainage and other strict cut-off conditions: suitable for food, pharmaceutical, petrochemical, electric power, metallurgy and other industries
Packing: wooden case, wooden pallet or packing method specified by customers.
FQA
1.What are the main connection methods of one-piece ball valve?
At present, there are three forms: butt welding, clip and screw thread
2.What's the difference between one piece ball valve and two piece ball valve?
(1)Two piece ball valve is easier to disassemble than one piece ball valve.
(2)One piece ball valve is fixed by a plug. It is small in size, reliable in sealing, simple in structure and convenient in maintenance. The actual diameter of the chip thread is smaller.
(3)The two-piece ball valve is fixed by the two-piece valve body clamped ball, the maintenance is relatively complex, the tightness of the middle bolt is the key, which is related to whether the leakage. Two piece ball valve is not suitable for high pressure.
We also have a number of experienced staff with rich professional knowledge and many years of production and management experience, so that our Stainless Steel Two Piece Flange Ball Valve are constantly improving. It is our pursuit to let enterprises and employees grow and enhance competitiveness in the growing development. We improve the efficiency of comprehensive utilization of energy and resources to achieve clean and efficient production and safe development.
