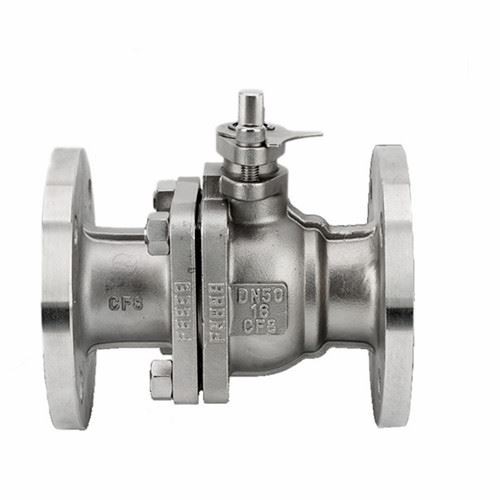

Stainless Steel Full Port Manual Flanged Floating Ball Valve
Product Introduction
We pay attention to the quality, quantity and reasonable price of the products. We guarantee the quality of our Sanitary Clamp U Type Tee, Cast Steel Swing Check Valve, Flanged Carbon Steel Swing Check Valve and ensure that the prices are competitive. At the same time, we hope to receive strong support and assistance from all walks of life in the long-term development process. Any inquiry or comment is highly appreciated. We always adhere to the people-oriented principle and consciously unify the promotion of enterprise development and the maintenance of the fundamental interests of employees.
Ball valve is a new type of valve widely used in recent years. It has the following advantages:
1. The fluid resistance is small, and its resistance coefficient is equal to that of the same length of pipe.
2. Simple structure, small volume and light weight.
3. Tight and reliable. At present, plastic is widely used as sealing surface material of ball valve, which has good sealing performance and has been widely used in vacuum system.
4. Convenient operation, fast opening and closing, from full opening to full closing as long as 90 ° rotation, convenient for remote control.
5. Easy maintenance, simple structure of ball valve, movable sealing ring, easy disassembly and replacement.
6. When the valve is fully opened or closed, the sealing surface of the ball and valve seat is isolated from the medium, and the medium will not cause the erosion of the valve sealing surface.
7. Wide range of application, diameter from small to several millimeters, to several meters, from high vacuum to high pressure can be applied. This kind of valve should be installed horizontally in the pipeline.
Nominal diameter | L | W | H | D | D1 | D2 | b | f | z-d | |
series 1 | series 2 | |||||||||
15 | 130 | 108 | 130 | 59 | 95 | 65 | 45 | 14 | 2 | 4-14 |
20 | 140 | 117 | 130 | 63 | 105 | 75 | 55 | 14 | 2 | 4-14 |
25 | 150 | 127 | 160 | 75 | 115 | 85 | 65 | 14 | 2 | 4-14 |
32 | 165 | 140 | 160 | 85 | 135 | 100 | 78 | 16 | 2 | 4-18 |
40 | 180 | 165 | 230 | 95 | 145 | 110 | 85 | 16 | 3 | 4-18 |
50 | 200 | 178 | 230 | 107 | 160 | 125 | 100 | 16 | 3 | 4-18 |
65 | 220 | 190 | 400 | 142 | 180 | 145 | 120 | 18 | 3 | 4-18 |
80 | 250 | 203 | 400 | 152 | 195 | 160 | 135 | 20 | 3 | 8-18 |
100 | 280 | 305 | 700 | 178 | 215 | 180 | 155 | 20 | 3 | 8-18 |
125 | 320 | 365 | 1100 | 252 | 245 | 210 | 185 | 22 | 3 | 8-18 |
150 | 360 | 394 | 1100 | 272 | 280 | 240 | 210 | 24 | 3 | 8-23 |
200 | 400 | 457 | 1500 | 342 | 335 | 295 | 265 | 26 | 3 | 12-23 |
200 | 457 | - | 398 | 335 | 295 | 265 | 26 | 3 | 12-23 | |
250 | 533 | 一 | 495 | 405 | 355 | 320 | 30 | 3 | 12-25 | |
300 | 610 | - | 580 | 460 | 410 | 375 | 30 | 3 | 12-25 | |
Parameter level：
1. Nominal pressure or pressure level: pn1.0-32.0mpa, ANSI class 150-900, jis10-20k;
2. Nominal diameter: dn8-900, NPS1 / 4-36;
3. Connection mode: flange, butt welding, thread, socket welding, etc;
4. Applicable temperature: - 196 ℃ ~ 540 ℃;
5. Drive mode: manual, worm gear drive, pneumatic, electric, hydraulic, pneumatic hydraulic, electro-hydraulic linkage;
6. Valve body materials: WCB, zg1cr18ni9ti, zg1cr18ni12mo2ti, CF8 (304), CF3 (304L), CF8M (316), cf3m (316L), Ti.
Product application：Different materials can be used for water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other media.
Price：Our price fluctuates with raw materials and exchange rate.Please leave your contact information and give you a new quotation as soon as possible.
Packing: wooden case, wooden pallet or packing method specified by customers.
