Sanitary Clamped Pipe Joint

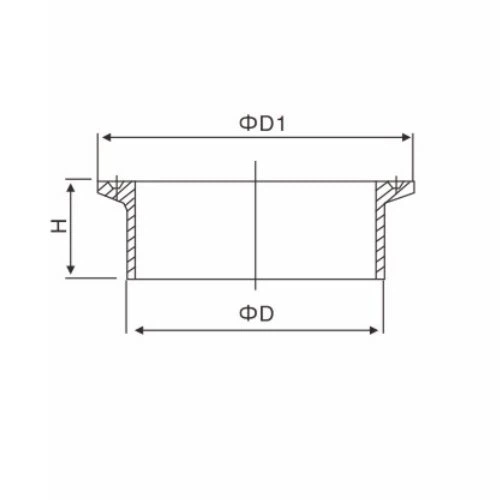

Size | D | D1 | H | t(mm) |
1/2" | 12.7 | 25.4 | 21.5 | 1.5 |
3/4" | 19.1 | 25.4 | 21.5 | 1.5 |
1" | 25.4 | 50.5 | 21.5 | 1.5 |
1 1/4" | 31.8 | 50.5 | 21.5 | 1.5 |
1 1/2" | 38.1 | 50.5 | 21.5 | 1.5 |
45 | 45 | 64 | 21.5 | 1.5 |
2“ | 50.8 | 64 | 21.5 | 1.5 |
57 | 57 | 77.5 | 21.5 | 2.0 |
2 1/2" | 63.5 | 77.5 | 21.5 | 2.0 |
3" | 76.2 | 91 | 21.5 | 2.0 |
3 1/2" | 88.9 | 106 | 21.5 | 2.0 |
4" | 101.6 | 119 | 21.5 | 2.0 |
108 | 108 | 119 | 21.5 | 2.0 |
114.3 | 114.3 | 130 | 21.5 | 2.0 |
133 | 133 | 145 | 21.5 | 2.0 |
140 | 140 | 155 | 21.5 | 2.0 |
152 | 152 | 168 | 21.5 | 3.0 |
159 | 159 | 183 | 21.5 | 3.0 |
204 | 204 | 217 | 21.5 | 3.0 |
219 | 219 | 233.5 | 21.5 | 3.0 |
254 | 254 | 268.5 | 21.5 | 3.0 |
304 | 304 | 319 | 21.5 | 3.0 |
Product Description:
Quick fitting large diameter joint has beautiful appearance, reasonable price, acid and alkali resistance and corrosion resistance.
Material: 201, 304, 316, 316L, etc
Connection mode: clamp type (quick coupling)
Product application：
It is suitable for food, beverage, pharmacy, dairy products, beer and fine chemical industry.
Price：
Our price fluctuates with raw materials and exchange rate.Please leave your contact information and give you a new quotation as soon as possible.
Packing:
wooden case, wooden pallet or packing method specified by customers.
