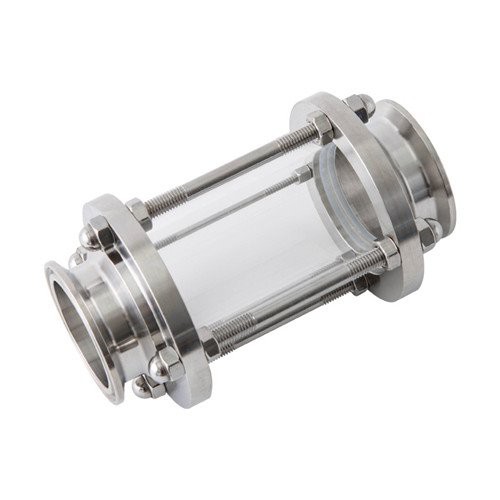

Sight Glass with Mesh
Tubular Sight Glass With Mesh Protection
Straight Clamped Sight Glass
Main size
Size | H | D | D1 | Dn |
1" | 156 | 78 | 50.5 | 22.4 |
1 1/4" | 156 | 78 | 50.5 | 28.8 |
1 1/2" | 160 | 86 | 50.5 | 35.1 |
2" | 166 | 102 | 64 | 47.8 |
2 1/2" | 170 | 115 | 77.5 | 59.5 |
3" | 174 | 124 | 91 | 72.2 |
3 1/2" | 176 | 139 | 106 | 84.9 |
4" | 191 | 154 | 119 | 97.6 |
5" | 212 | 185 | 144.4 | 127 |
6" | 236 | 215 | 183 | 153 |
Design and Features
Available in sizes DN25 to DN 150
Full bore design.
Attachment by self- locking nuts. 360° viewing angle.
Can bu used in vertical or horizontal position.
Protective sleeve:AISI 304
Glass: tempered glass
Gasket: VMQ FDA 177.2600
Surface treatment： CNC lathe
Working temp :-10℃ to 120℃
Applications
A tubular sight-glass is comprised of stainless steel frame and glass.Through it, operator can observe the flowing of the liquid substance clearly and precisely in the fields of food, cosmetics, pharmaceutical and fine chemicals industries.
Options
Gasket material:NBR,EPDM, FPM in accordance with FDAI 77.2600
Connection:weld,clamp,flange,thread
Price：Our price fluctuates with raw materials and exchange rate.Please leave your contact information and give you a new quotation as soon as possible.
Packing: wooden case, wooden pallet or packing method specified by customers.
