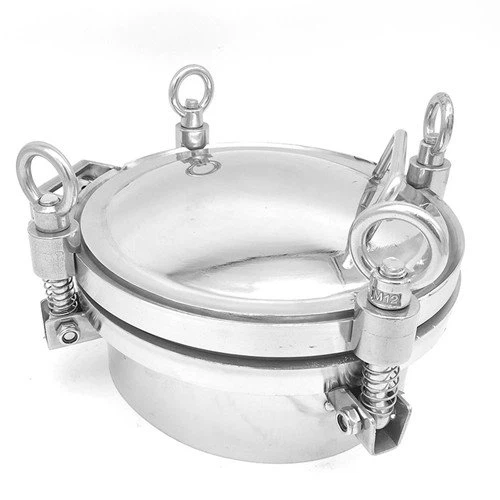

Pressure manhole
Outward opening man hole cover polished
Size | H1 | D1 | D2 |
ø102 | 100 | 102 | 96 |
ø133 | 100 | 133 | 127 |
ø159 | 100 | 159 | 153 |
ø219 | 100 | 219 | 213 |
ø250 | 100 | 250 | 244 |
ø300 | 100 | 300 | 294 |
ø350 | 100 | 350 | 344 |
ø400 | 100 | 400 | 394 |
ø)430 | 100 | 430 | 424 |
ø450 | 100 | 450 | 444 |
ø500 | 100 | 500 | 494 |
ø600 | 100 | 600 | 594 |
Product Description:
Height(H1 )can be changed to 120mm, 150mm,etc.The thickness can be changed to 4mm or other sizes.The amount of handles can be changed according to request of customers
Design and Features：
Outward opening man hole cover
Sight glass with flange
Union type sight glass
Internal surface： Ra0.8μm-0.5μm
Outside surface： polishing finished, sub-light finished.
Max Pressure： 5.0bar
Gasker EPDM,NBR,SILICON,FPM in accordance
with FDAI77.1600
Height 100,120,150mm
Material： AISI 304/316L
Applications
The pressure type man hole Cover is mainly used for pressure vessel in the fields of food, beverage, chemical, etc.
Price
Our price fluctuates with raw materials and exchange rate.Please leave your contact information and give you a new quotation as soon as possible.
Packing
wooden case, wooden pallet or packing method specified by customers.
